OBIEE Image prompt

Just a nice gimic, the OBIEE image prompt. First get a image, I used this one: http://www.faqs.org/docs/htmltut/images/testmap.gif

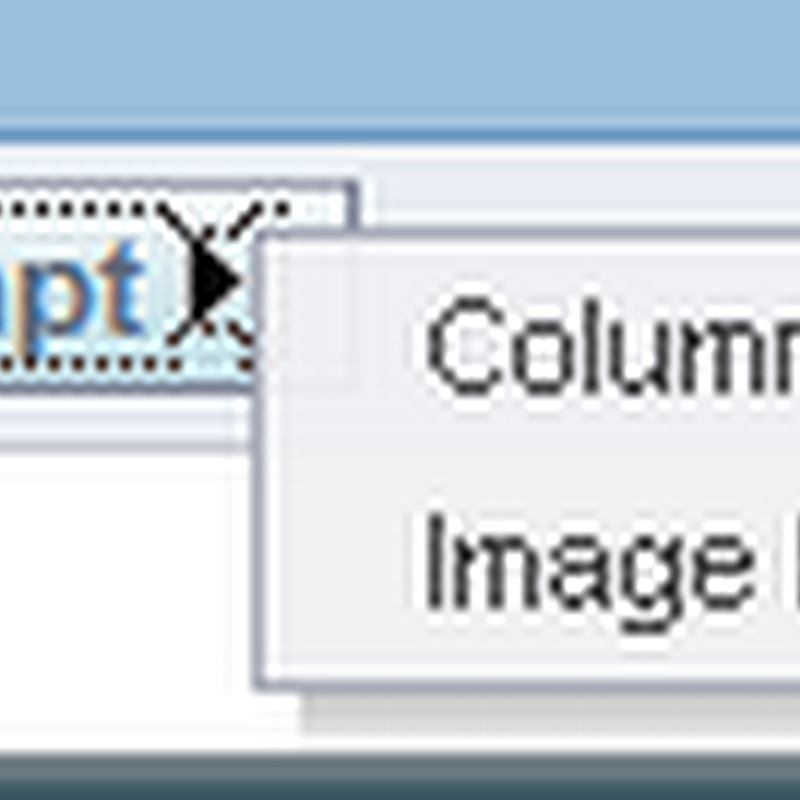

Create a image prompt:



Next use the HTML SHAPE tag to add the coordinates: http://www.faqs.org/docs/htmltut/images/_AREA_SHAPE.html

<MAP NAME="map1"> <AREA HREF="contacts.html" ALT="Contacts" TITLE="Contacts" SHAPE=RECT COORDS="6,116,97,184"> <AREA HREF="products.html" ALT="Products" TITLE="Products" SHAPE=CIRCLE COORDS="251,143,47"> <AREA HREF="new.html" ALT="New!" TITLE="New!" SHAPE=POLY COORDS="150,217, 190,257, 150,297,110,257"> </MAP>


Press Extract Image Map from HTML


add the column and value.

Till Next Time
