OBIEE Setting a picture as graph backgound

One of our customers wanted a custom background for there graphs, some what in this style :-) :

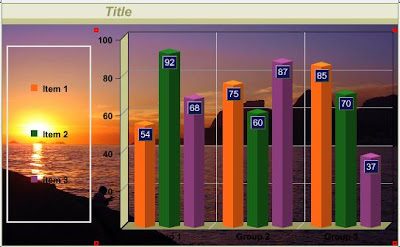

So that the would end up with a graph looking like this:Step 1: from the corda archives download version 5.1.2:http://www.corda.com/corda-update-archive.php There is a fourteen day free license key, after that you will have to buy the product.

Step 2: With the popchart builder create a new graph using the wizard, any graph will do.

Press the add image button:In the PCXML file locate the {ChartBitmap part:

Copy and paste into the PCXML file of your OBIEE graph. between the {project} tags.

Add the following reference to make the graph visible:

Playaround with zindex, if the image isn't fully on the background.

Till Next Time
